Models 180S • 280S Individual Curve

140 • 180 • 240 • 280 Product Information Page

<< Prev Model

Click and drag your mouse on the curve. Lines are automatically drawn as either horizontal or vertical. To clear the canvas, click the "Clear Lines" button below the curve.

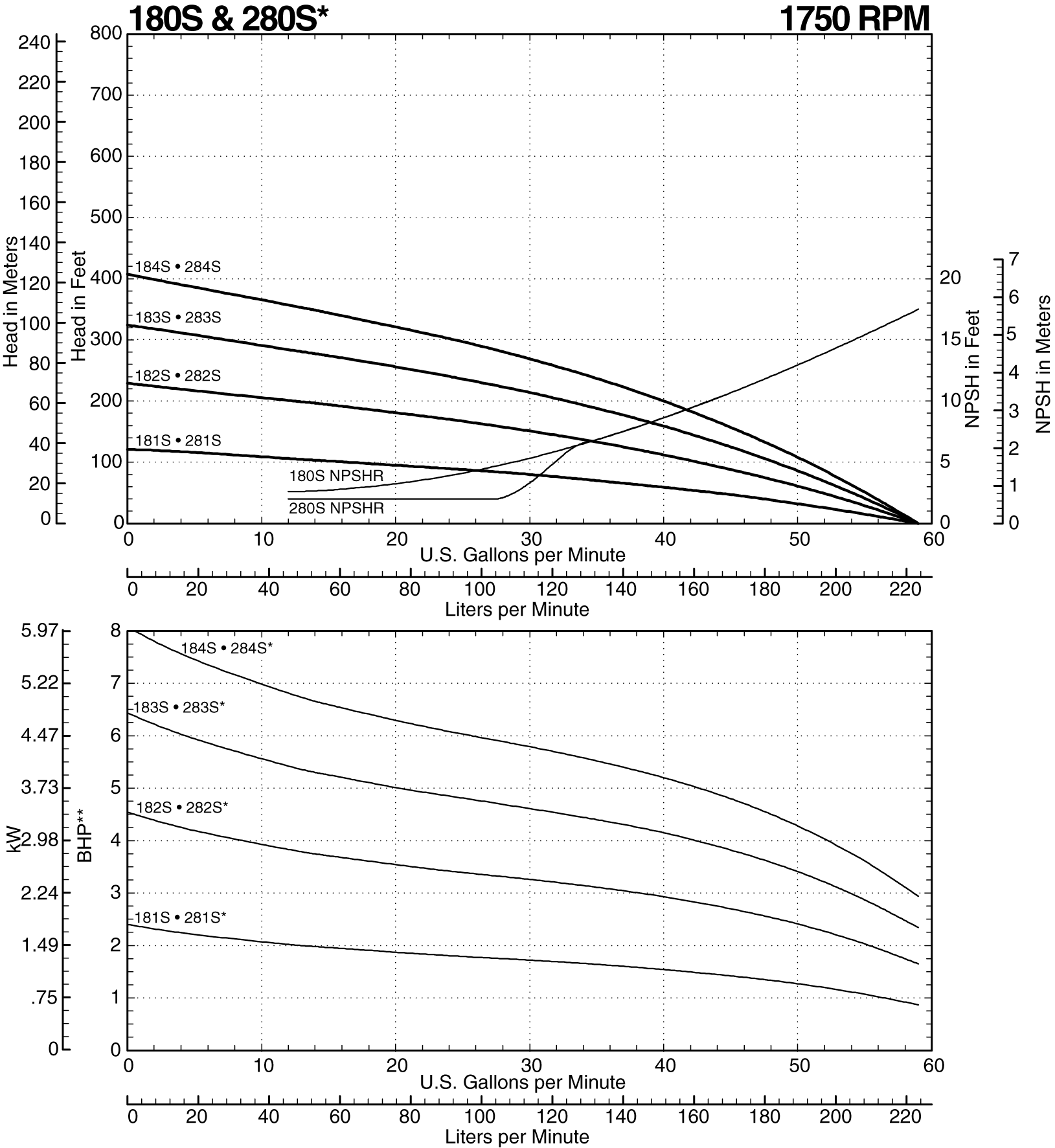

180S Curve at 1750 RPM

180S Curve at 1750 RPM Thumbnail

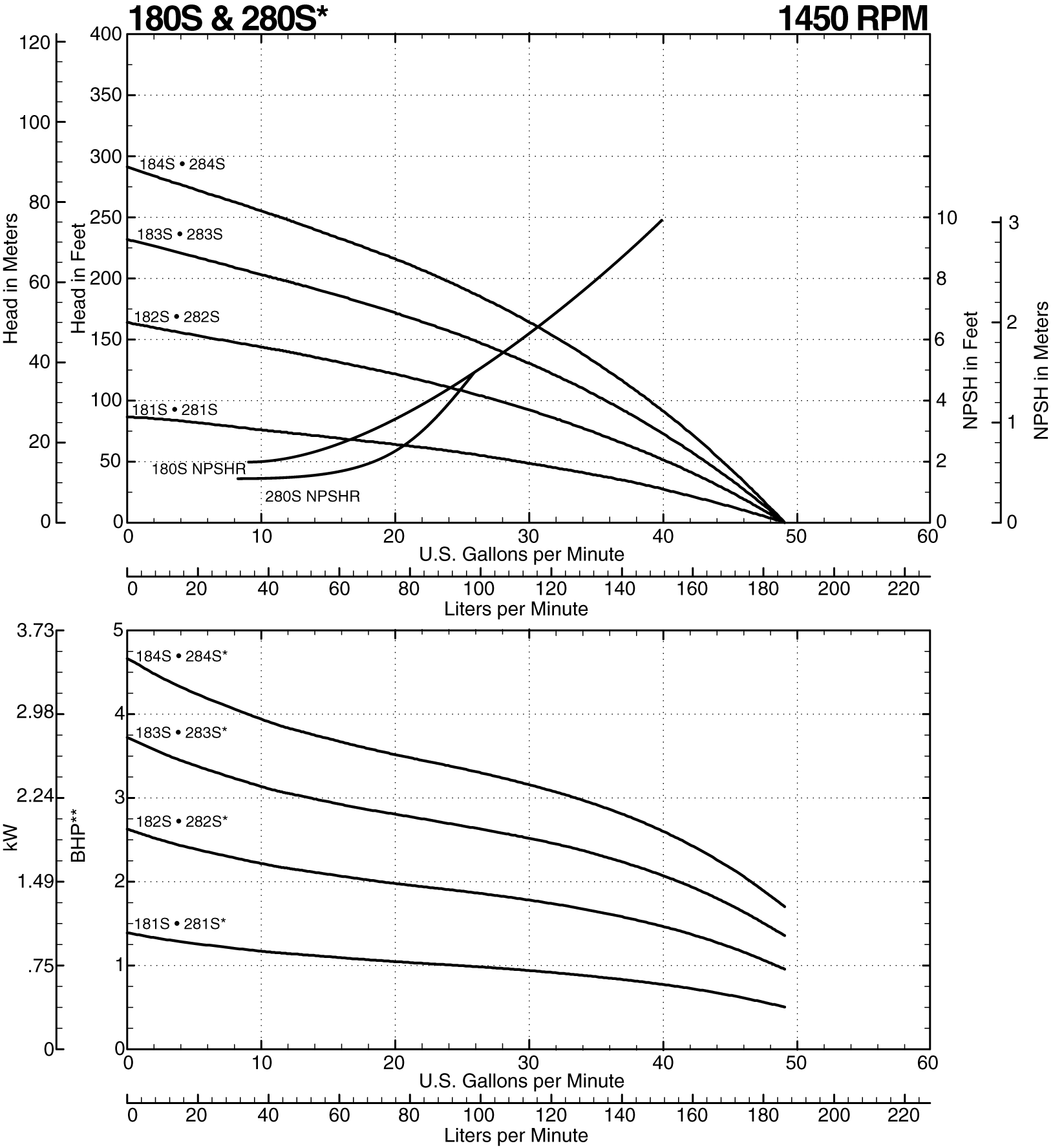

180S Curve at 1450 RPM Thumbnail
<< Prev Model

Notes: Consult factory for operation below 23 GPM
*Add 1/2 horsepower for 240 Series models
**Horsepower data is valid for 1.0 specific gravity fluids only. Data provided is based of performance testing with water.
