MTH Pumps, HP41 Hermetic Regenerative Turbine Freon Pump

HP41 • HP412 Hermetic Regenerative Turbine Refrigerant Pump

Back to Custom Engineered Products

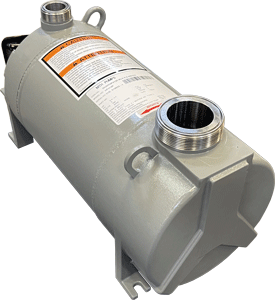

HP41 Series Pump

Capacities to 45 GPM
Heads to 200 Feet
Temperatures to 150°F* (66°C)
Inverter Duty Motor
Sealless
For Non-conductive Fluids
For Non-corrosive Fluids

Performance Curves

HP41 Series Performance Curves

Dimensions

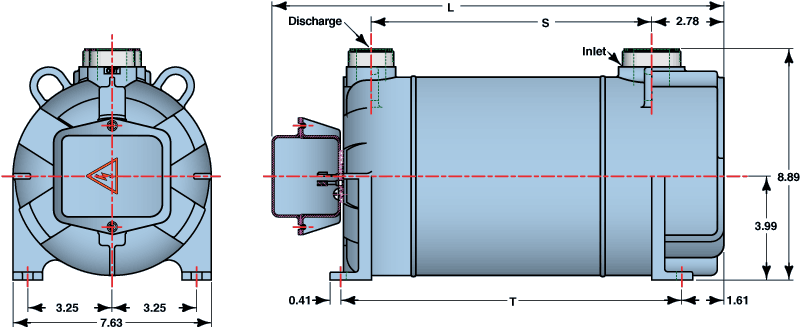

HP41 Series Dimensions

PUMP MODEL	INLET	DISCHARGE	HP	L	S	T
HP41E	1.75-12 Rotalock	1.25-12 Rotalock	1 1/2	16.38	9.79	12.13
HP41J	1.75-12 Rotalock	1.25-12 Rotalock	1 1/2	16.38	9.79	12.13
HP41J	1.75-12 Rotalock	1.25-12 Rotalock	3	17.38	10.79	13.13
HP41P	2.25-12 Rotalock	1.75-12 Rotalock	3	17.38	10.79	13.13
HP412P	2.875-12 Rotalock	1.75-12 Rotalock	5	18.63	12.05	14.38
HP412P	2.875-12 Rotalock	1.75-12 Rotalock	7 1/2	19.63	13.05	15.38

Download a printable version of the HP Series Product Bulletin in .pdf format.
