MTH Pumps M50 • L50 Series Regenerative Turbine Pumps

M50 • L50 Product Information Page.

Performance Curves

Composite Curves: Models B thru J and J thru R at 3450 RPM (2880 RPM Below)
Select a family curve to see an individual curve and performance.

M50-L50 Series Composite Curves: Models B thru J and J thru R at 3450 RPM M51J•L51J thru M55J•L55J M51J•L51J thru M55J•L55J M51G•L51G thru M55G•L55G M51E•L51E thru M55E•L55E M51D•L51D thru M55D•L55D M51C•L51C thru M55C•L55C M51B•L51B thru M55B•L55B M51M•L51M thru M55M•L55M M51L•L51L thru M55L•L55L M51L•L51P thru M55L•L55P M51R•L51R thru M55R•L55R

Top of Page

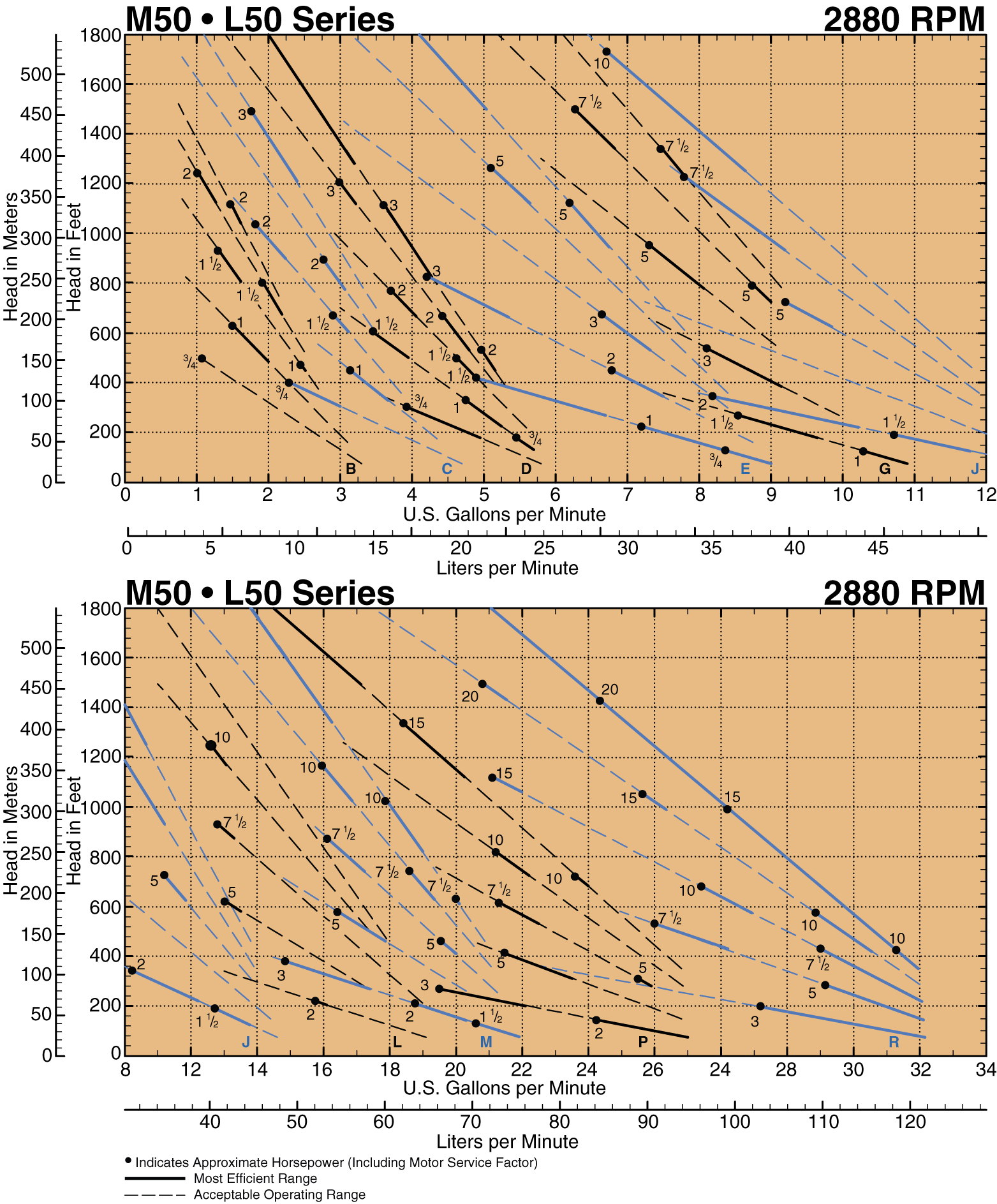

Composite Curves: Models B thru J and J thru R at 2880RPM
Select a family curve to see an individual curve and performance.

M50-L50 Series Composite Curves: Models B thru J and J thru R at 2880 RPM M51J•L51J thru M55J•L55J M51J•L51J thru M55J•L55J M51G•L51G thru M55G•L55G M51E•L51E thru M55E•L55E M51D•L51D thru M55D•L55D M51C•L51C thru M55C•L55C M51B•L51B thru M55B•L55B M51M•L51M thru M55M•L55M M51L•L51L thru M55L•L55L M51L•L51P thru M55L•L55P M51R•L51R thru M55R•L55R

Top of Page

Click here to return to the M50 • L50 Product Information Page.

For a copy of the M50•L50 Manual and M50•L50 Parts List, go to the Product Support Page.

Download a printable version of the M50•L50 Product Bulletin in .pdf format.

Download a printable version of theM50•L50 Catalog Pages (curves and dimensions) in .pdf format.
