P31 Series Regenerative Turbine Pumps

P31 Product Information Page

Dimensions

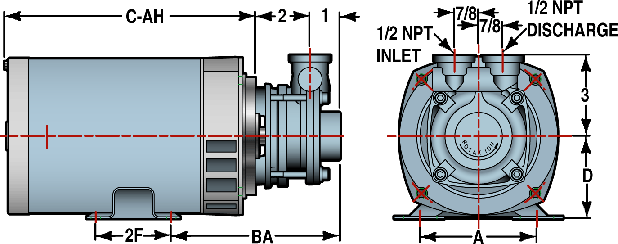

P31 Series with a 48 Frame Single Phase ODP motor

Zoom

P31 Series with a 48 Frame Single Phase ODP motor

Zoom







Click here for further motor information

Motor

Ph.

HP

Voltage

Encl

Frame

Suction

Discharge

A

D

2F

BA

C-AH*

DLC-5000-03-ODP

1

1/3

115/208-230

ODP

48

1/2"

1/2"

4.25

3

2.75

6

8.71



P31 Series with a 48 Frame Three Phase TEFC Motor

Click here for further motor information

Motor Ph. HP Voltage Encl Frame Suction Discharge A D 2F BA C-AH*
DLC-5000-03-ODP 1 1/3 115/208-230 ODP 48 1/2" 1/2" 4.25 3 2.75 6 8.71

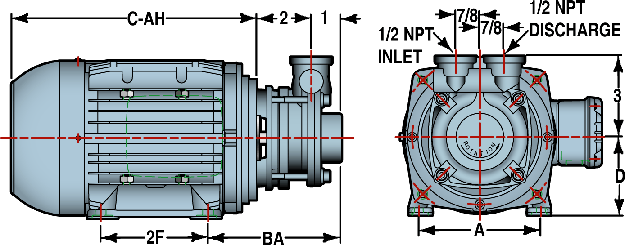

P31 Series with a 48 Frame Three Phase TEFC Motor

Zoom

P31 Series with a 48 Frame Three Phase TEFC Motor

Click here for further motor information

Motor Ph. HP Voltage Encl Frame Suction Discharge A D 2F BA C-AH*
WEC-4524-05-TEF 3 1/2 208-230/460 TEFC 48 1/2" 1/2" 2.2 2.8 3.54 5 8.84

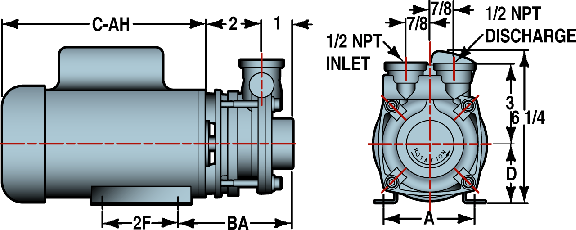

P31 Series with a 36 Frame Single Phase Open Motor

Zoom

P31 Series with a 36 Frame Single Phase Open Motor

Click here for further motor information

Motor Ph. HP Voltage Encl Frame Suction Discharge A D 2F BA C-AH*
FRC-5017-03-OPN 1 1/3 115/208-230 OPN 36 1/2" 1/2" 2.94 2.25 2.5 3.65 8.01
