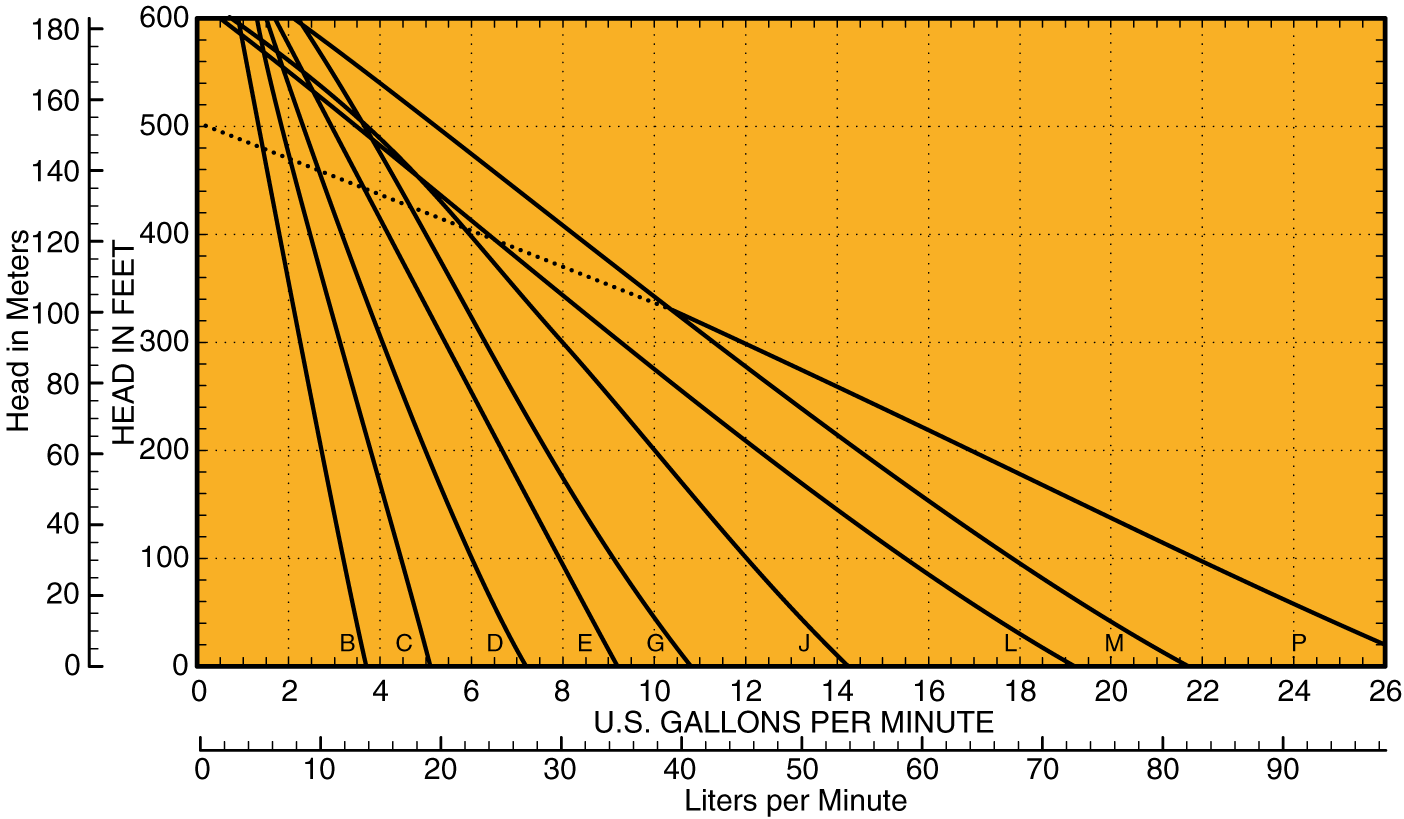

3450 Composite Curves: T/E41B thru T/E41P
Select a family curve to see an individual curve and performance.

---

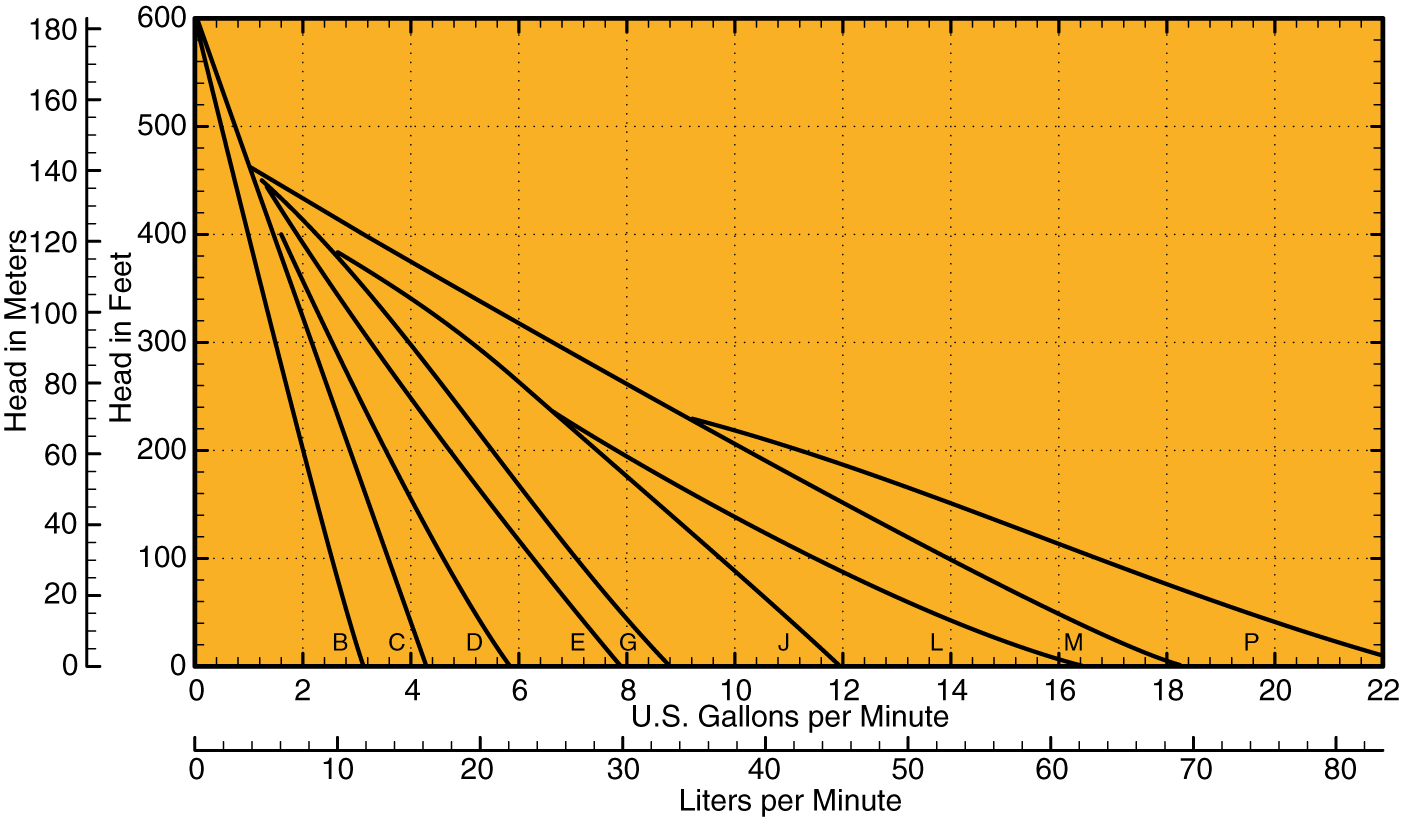

2880 Composite Curves: T/E41B thru T/E41P
Select a family curve to see an individual curve and performance.

---

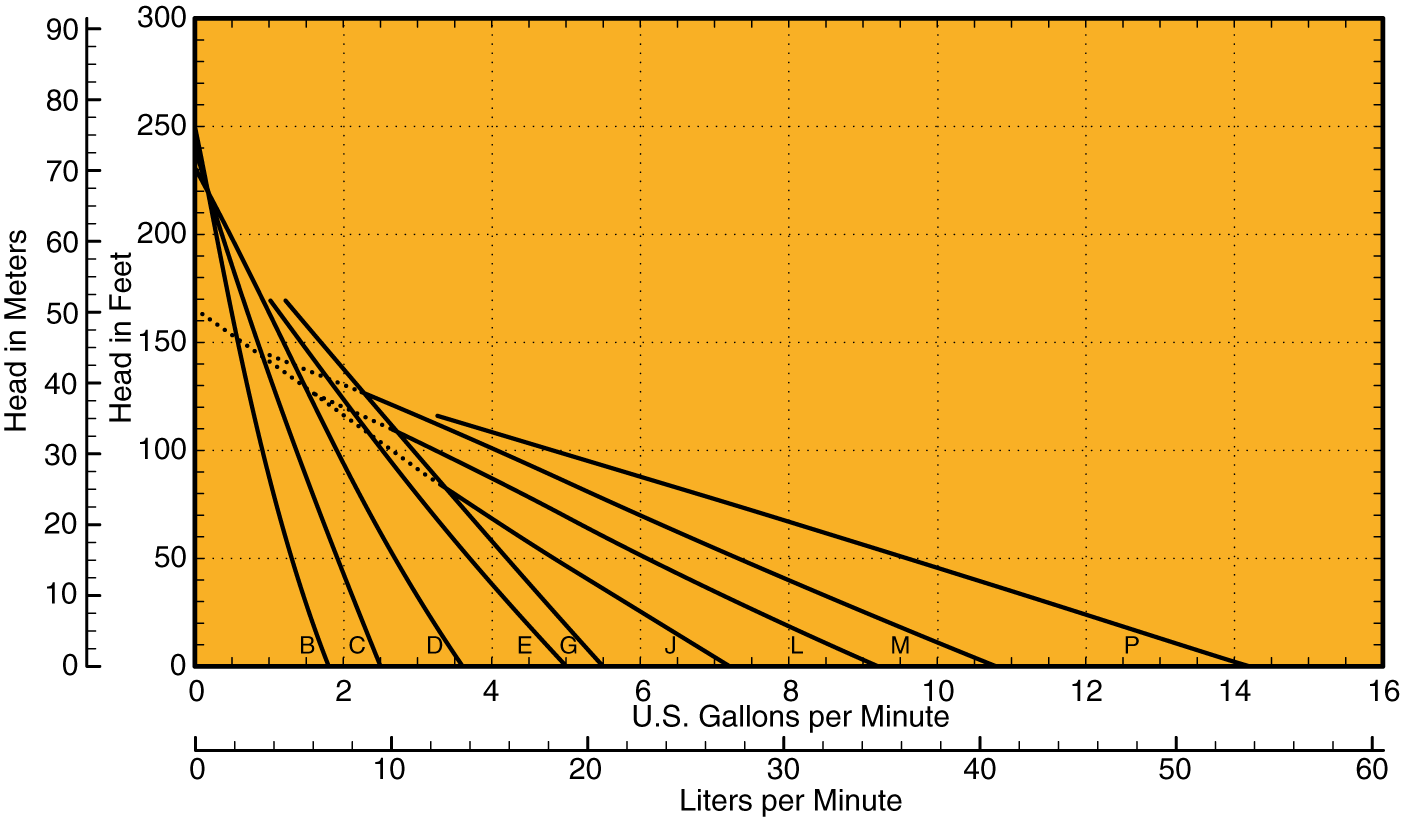

1750 Composite Curves: T/E41B thru T/E41P
Select a family curve to see an individual curve and performance.

Click here to return to the T41 • E41 Product Information Page.

Download a printable version of the T41 • E41 Catalog Pages in .pdf format.

Download a printable, metric version of the T41 • E41 Catalog Pages in .pdf format.

Download a printable version of the T41 1750 RPM Performance Curves in .pdf format.
