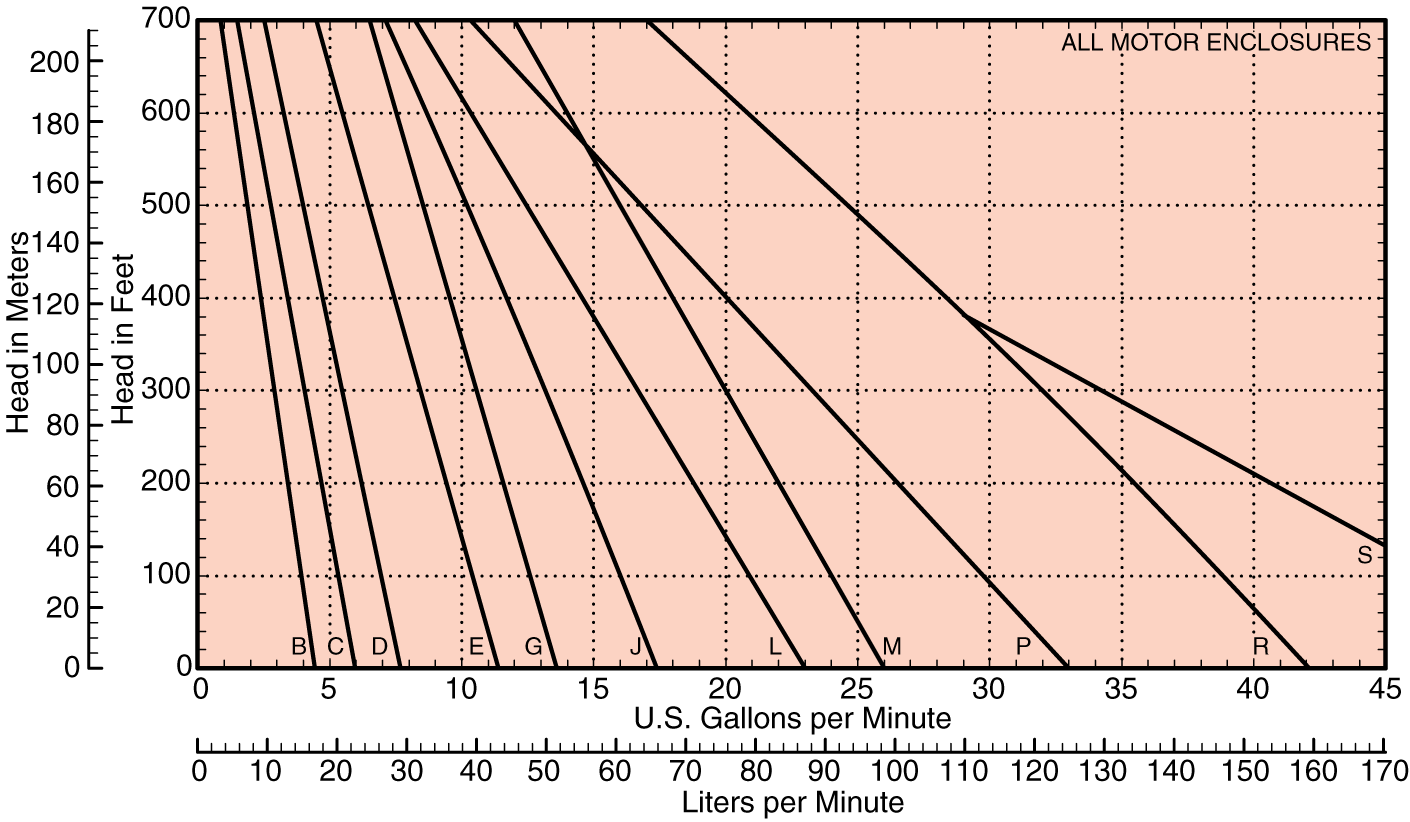

3450 Composite Curves: E/T51B thru E/T51S
Select a family curve to see an individual curve and performance.

---

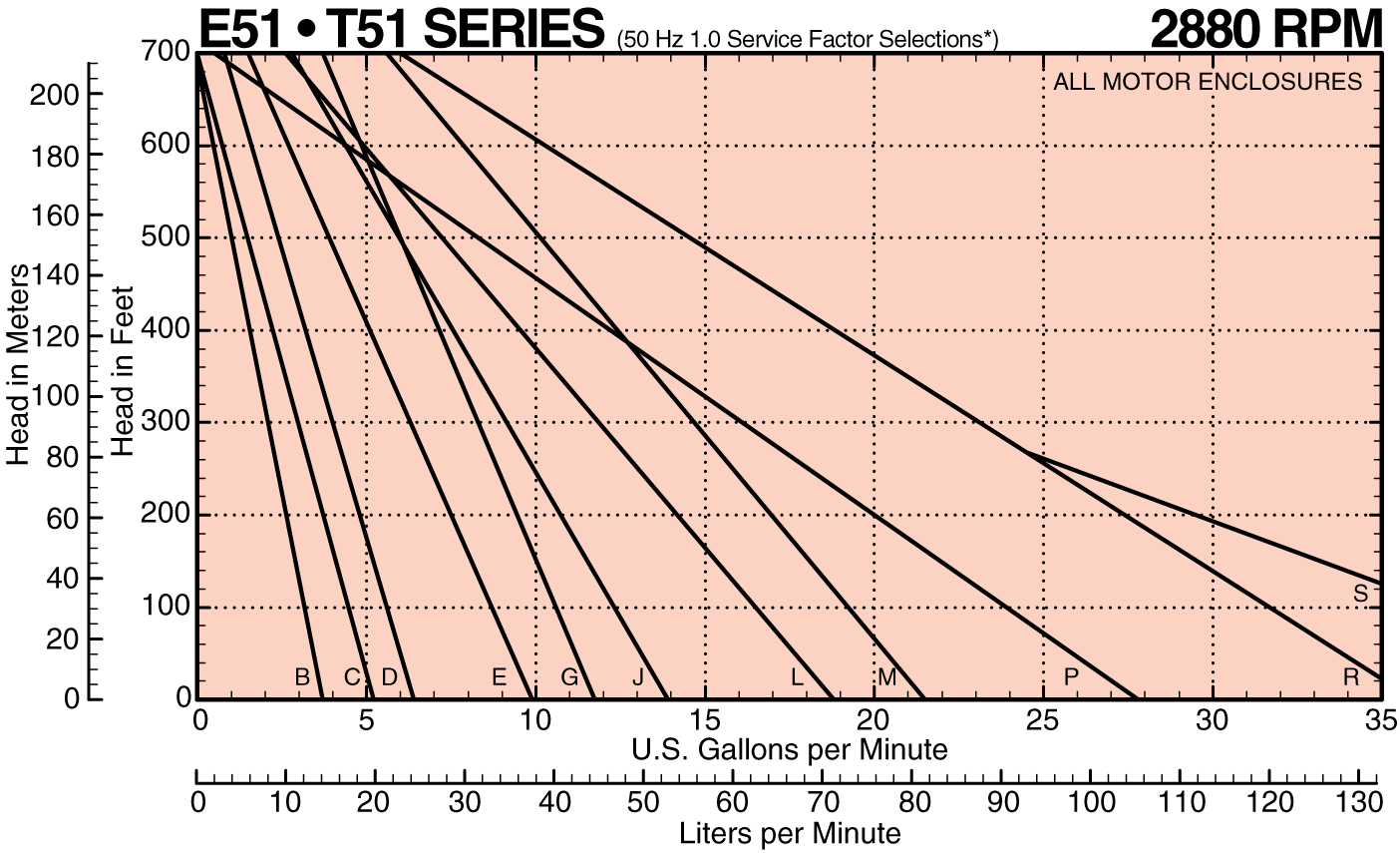

2880 Composite Curves: E/T51B thru E/T51S
Select a family curve to see an individual curve and performance.

---

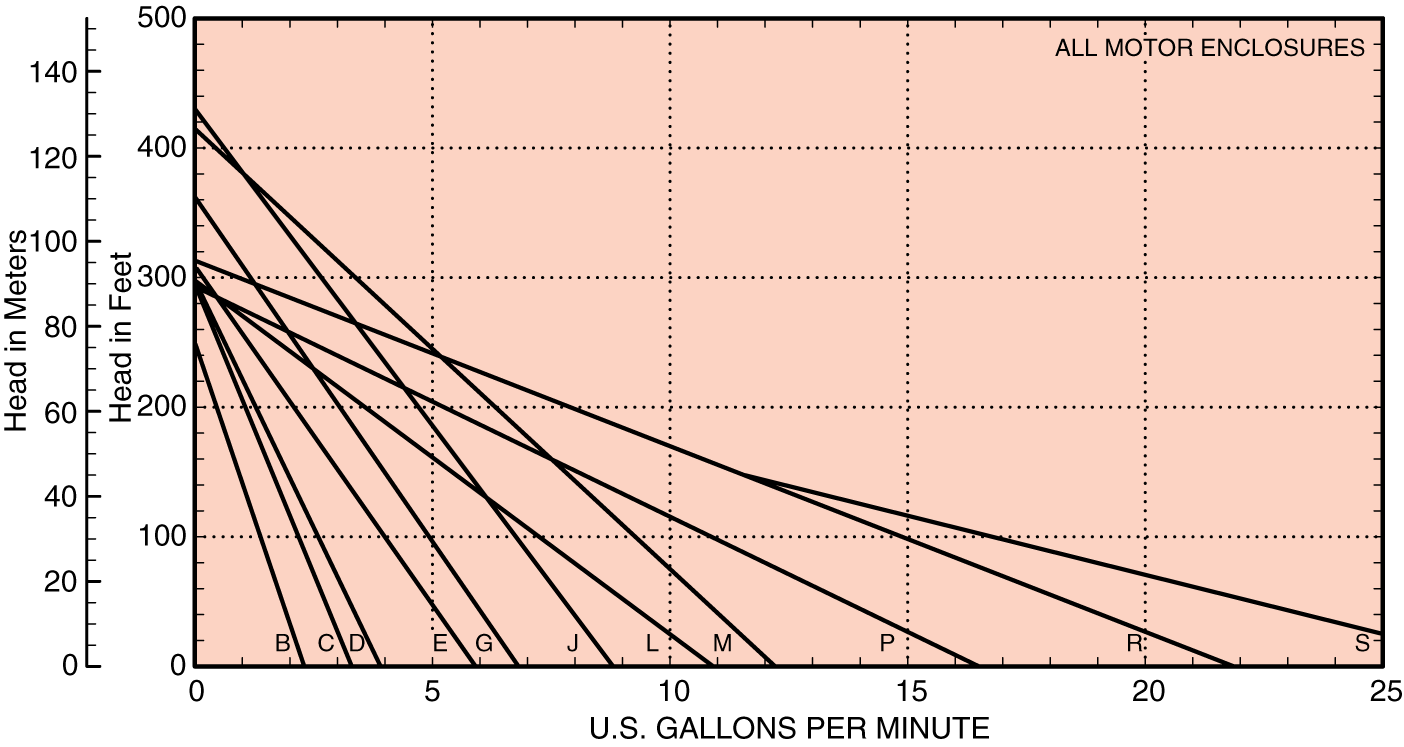

1750 Composite Curves: E/T51B thru E/T51S
Select a family curve to see an individual curve and performance.

Click here to return to the T51 • E51 Product Information Page.

Download a printable version of the T51 • E51 Catalog Pages in .pdf format.

Download a printable version of the T51 1750 RPM Performance Curves in .pdf format.
