T51 • E51 Series Regenerative Turbine Pumps

T51 • E51 Product Information Page

Close Coupled


C3 & C15 Motor Frames

Zoom

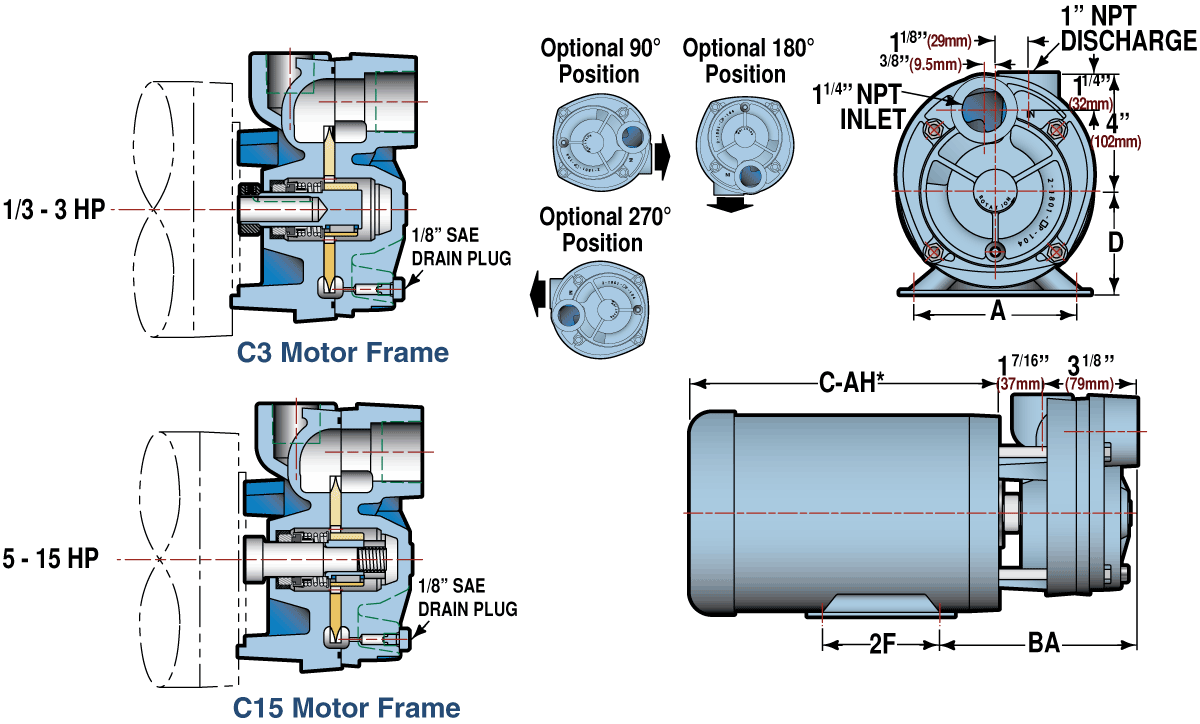

T51 Series Close Coupled Dimensions


D3 Motor Frame

Zoom

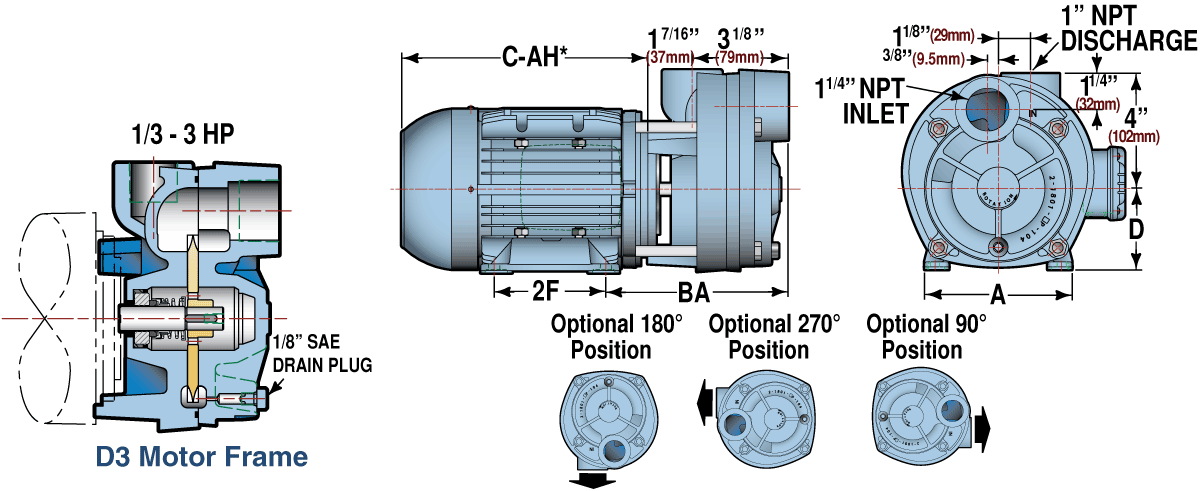

E51 Series Close Coupled Dimensions

  Horsepower Frame A D BA 2F
T51
C3 & C15 Motor Frames
1/3 ~ 3 ODP, TEFC, & EXP** 56C 4 7/8
124mm
3 1/2
89mm
7 7/16
189mm
3
76mm
3 EXP 182TCZ 7 1/2
191mm
4 1/2
114mm
8 7/16
214mm
4 1/2
114mm
5 ODP & TEFC, 7 1/2 ODP 56Y 4 7/8
124mm
3 1/2
89mm
7 9/16
192mm
3
76mm
5 EXP, 7 1/2 TEFC 184TCZ 7 1/2
191mm
4 1/2
114mm
8 1/4
210mm
5 1/2
140mm
7 1/2 EXP & 10 TEFC 213TCZ 9 7/8
251mm
5 1/4
133mm
8 1/4
210mm
5 1/2
140mm
E51 - 3-phase
D3 Motor Frame
1/2 ~ 3/4 TEFC 71 4 7/16
113mm
2 13/16
71mm
6 5/16
160mm
3 9/16
90mm
1 ~ 1 1/2 TEFC 80 4 15/16
125mm
3 1/8
79mm
6 1/2
165mm
3 15/16
100mm
2 ~ 3 TEFC 90 5 1/2
140mm
3 9/16
90mm
6 3/4
171mm
4 15/16
125mm
E51 - 1-phase
D3 Motor Frame
1/3 ~ 1 1/2 ODP 48 4 1/2
114mm
3
76mm
7 1/4
184mm
2 9/16
65mm
*C-AH Dimensions -Refer to Motor Support Pages
**Excludes 3 HP EXP

Pedestal Mounted


P3 Bearing Frame

Zoom

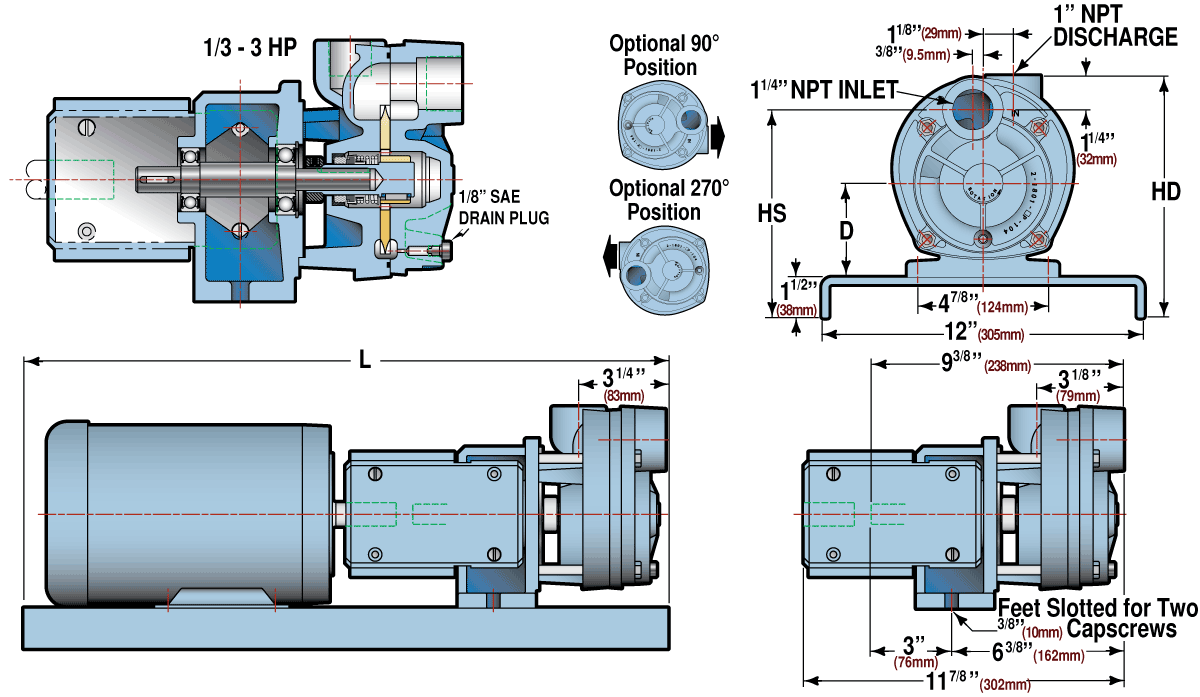

T51 Series on P3 Pedestal


P15 Bearing Frame

Zoom

P15 Bearing Frame Dimensions

Frame* D HD HS L(P3) L(P15)
56 3 1/2
89mm
9
229mm
7 3/4
197mm
24
610mm

143T 3 1/2
89mm
9
229mm
7 3/4
197mm
24
610mm
28
711mm
145T 3 1/2
89mm
9
229mm
7 3/4
197mm
24
610mm
28
711mm
182T 4 1/2
114mm
10
254mm
8 3/4
222mm
26
660mm
30
762mm
184T 4 1/2
114mm
10
254mm
8 3/4
222mm
26
660mm
30
762mm
213T 5 1/4
133mm
10 3/4
273mm
9 1/2
241mm
  33
838mm
215T 5 1/4
133mm
10 3/4
273mm
9 1/2
241mm
  33
838mm
Note: All Dimensions in inches
Refer to Motor Support Pages for frame size and other dimensional data.

Vertical Flange Mounted


C3 & C15 Motor Frames

Zoom

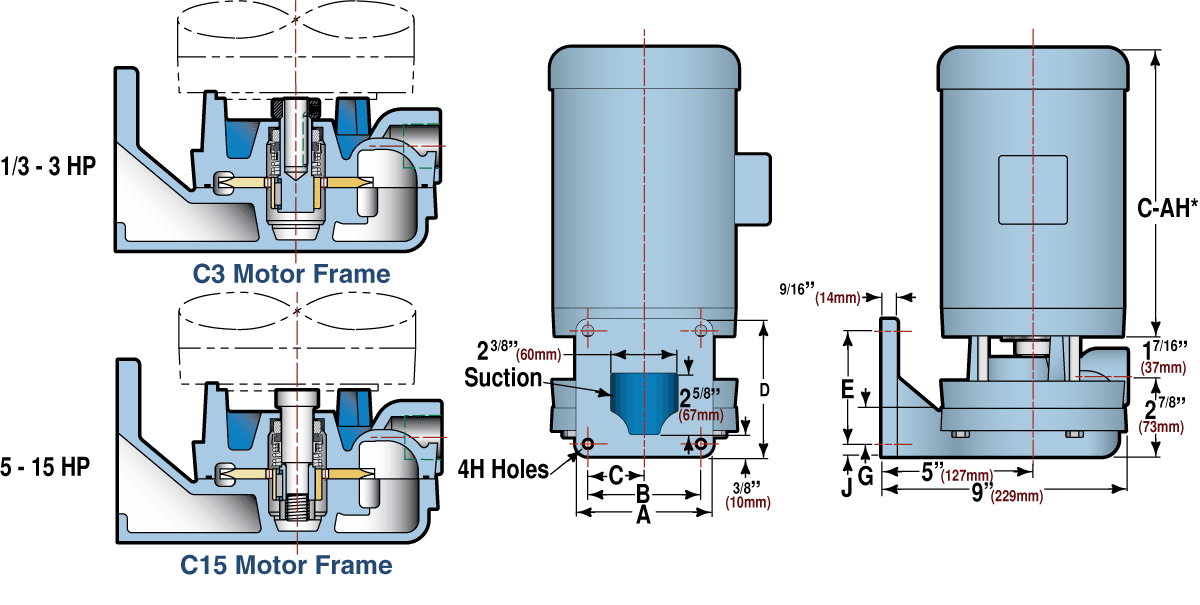

T51 Series Flange Mounted Pump Dimnensions


D3 Motor Frame

Zoom

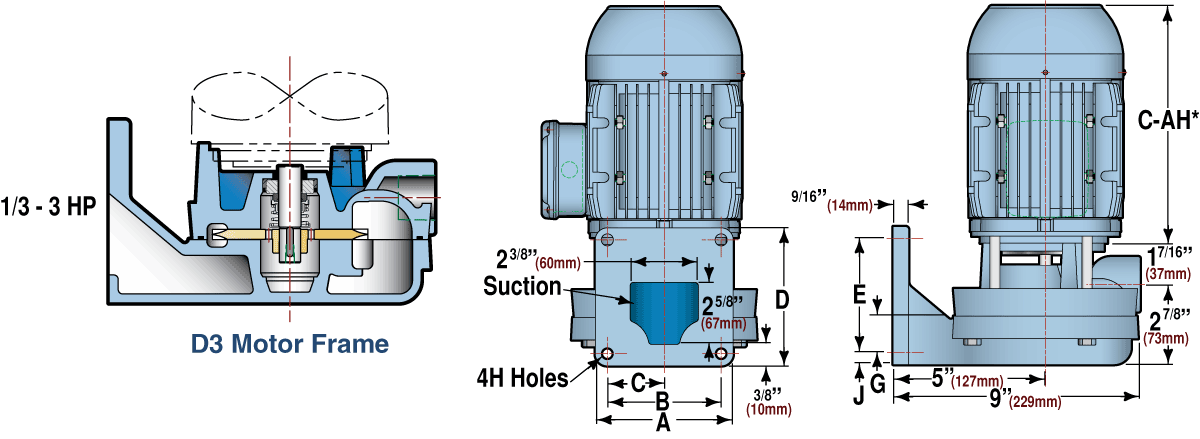

E51 Series Flange Mounted Pump Dimnensions

Flange Style

A

B

C

D

E

G

H

J

AU - Aurora (7 1/2 x 4 1/2) 7 1/2
191mm
6 1/4
159mm
3 1/8
79mm
4 1/2
114mm
3 1/4
83mm
1 1/8
29mm
9/16
14mm
5/8
16mm
DB - Dunham-Bush (Mepco) (4 1/2 x 4 1/2) 4 1/2
114mm
3.270
83mm
1.635
42mm
4.5
114mm
3.25
83mm
1.135
29mm
1/2
13mm
5/8
16mm
FE - Federal (7 3/4 x 4 3/4) 7 1/2
191mm
6 1/4
159mm
3 1/8
79mm
4 1/2
114mm
3 1/2
89mm
1 1/4
32mm
9/16
14mm
1/2
13mm
PA - Paco (6 1/2 x 3 3/4) 6 1/2
165mm
5 1/2
140mm
2 3/4
70mm
3 3/4
95mm
2 5/8
67mm
1 1/8
29mm
9/16
14mm
5/8
16mm
SH - Shippensburg (Shipco) & BU - Burks (6 1/4 x 4) 6 1/4
159mm
5
127mm
2 1/2
64mm
4
102mm
2 3/4
70mm
1 1/8
29mm
9/16
14mm
5/8
16mm
SK - Skidmore (6 1/8 x 4 1/8) 6 1/8
156mm
5
127mm
2.47
63mm
4.13
105mm
2.69
68mm
1.03
26mm
9/16
14mm
.72
18mm
ST - Sterling (5 x 5) 5
127mm
3 3/4
95mm
1 7/8
48mm
5
127mm
3 3/4
95mm
1 1/8
29mm
1/2
13mm
5/8
16mm
WI - Weinman (5 x 5) 5
127mm
5 1/8
130mm
2 1/16
53mm
5
127mm
4 1/8
95mm
1 5/16
33mm
7/16
11mm
7/16
11mm
*C-AH Dimension -Refer to Motor Support Pages for other dimensional data.
All Dimensions in Inches
